Products Description

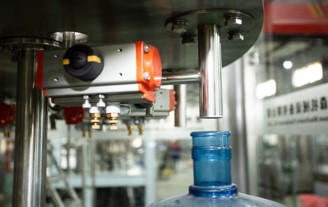

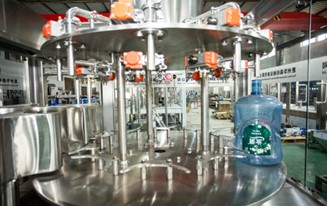

Equipped with a new automatic reset filling head, this machine inserts and rotates cleaned and disinfected buckets or barrels for atmospheric pressure filling. Features include fast filling speeds, zero overflow, minimal liquid loss, and precise water levels. A frequency converter regulates speed for stable operation. The motor in the lower cover mechanism features a waterproof design, ensuring seamless operation even in wet conditions. It automatically places the cover and can detect when the cover is missing, triggering the bucket cover to automatically transport it into place. Additionally, the bucket cover undergoes automatic disinfection, rinsing, and drying processes before being securely fitted and sealed, effectively preventing any secondary contamination.
Model | HSXG-10-900 | HSXG-12-1200 | HSXG-14-1500 | HSXG-16-2000 | HSXG-18-2500 |
| 10 | 12 | 14 | 16 | 18 |
Filling volume | 18.9L | 18.9L | 18.9L | 18.9L | 18.9L |
Barrel Specifications | F270*490(mm) | F270*490(mm) | F270*490(mm) | F270*490(mm) | F270*490(mm) |
Throughput (barrels/h) | 900 | 1200 | 1500 | 2000 | 2500 |
Air pressure | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa |
Air consumption | 0.1m3/min | 0.1m3/min | 0.1m3/min | 0.1m3/min | 0.1m3/min |
Rated voltage | AC380/50Hz | AC380/50Hz | AC380/50Hz | AC380/50Hz | AC380/50Hz |
