Products Description

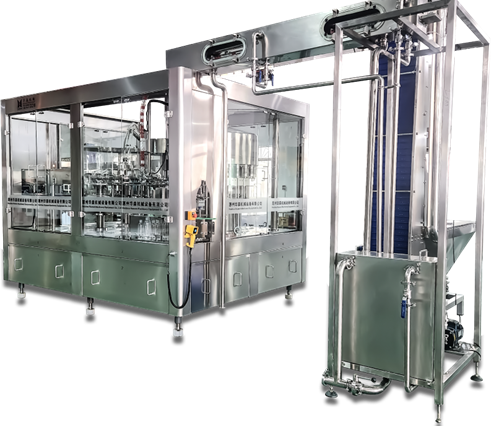

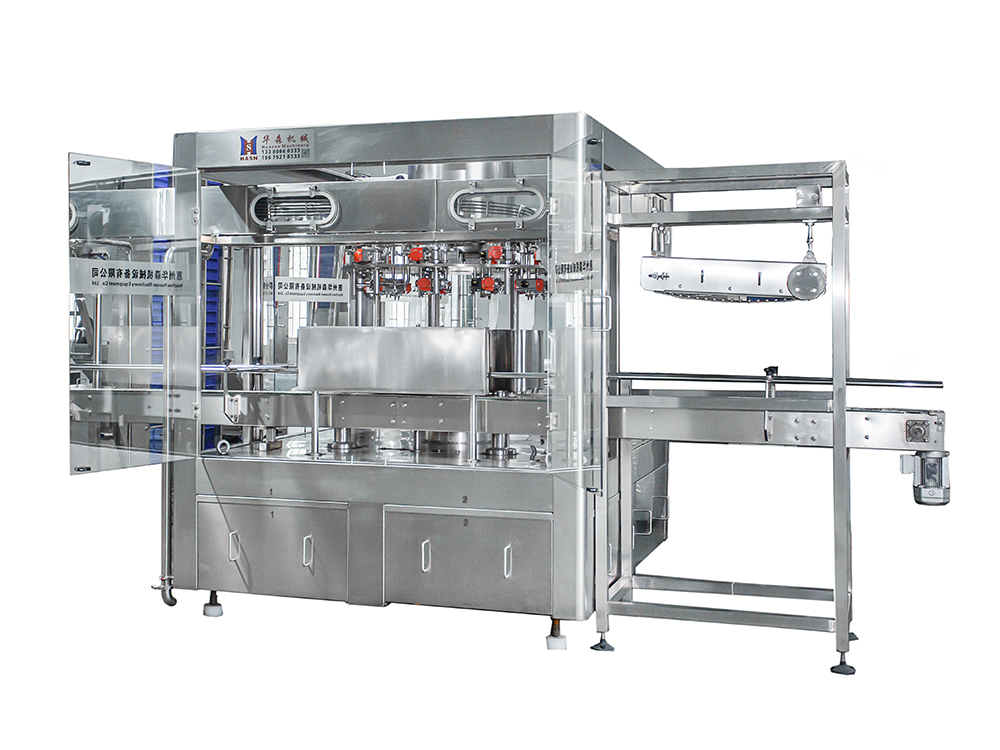

Utilizing normal pressure gravity level filling, this machine boasts fast filling speeds, zero overflow, minimal liquid loss, and precise water levels. The speed could be regulated by a frequency converter for stable operation. Features include automatic cap feeding, sorting, cleaning, disinfection, and cap grasping and screwing for seamless operation.
Model | HSG12-12-5 | HSG14-14-5 | HSG16-16-6 | HSG18-18-6 |
Number of filing heads | 12 | 14 | 16 | 18 |
Filling volume | 4.5-16L | 4.5-16L | 4.5-16L | 4.5-16L |
Throughput (barrels/h) | 1200 | 1500 | 2000 | 2500 |
Air pressure | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa |
Air consumption | 0.3m3/min | 0.3m3/min | 0.3m3/min | 0.3m3/min |
Rated voltage | AC380/50Hz | AC380/50Hz | AC380/50Hz | AC380/50Hz |
